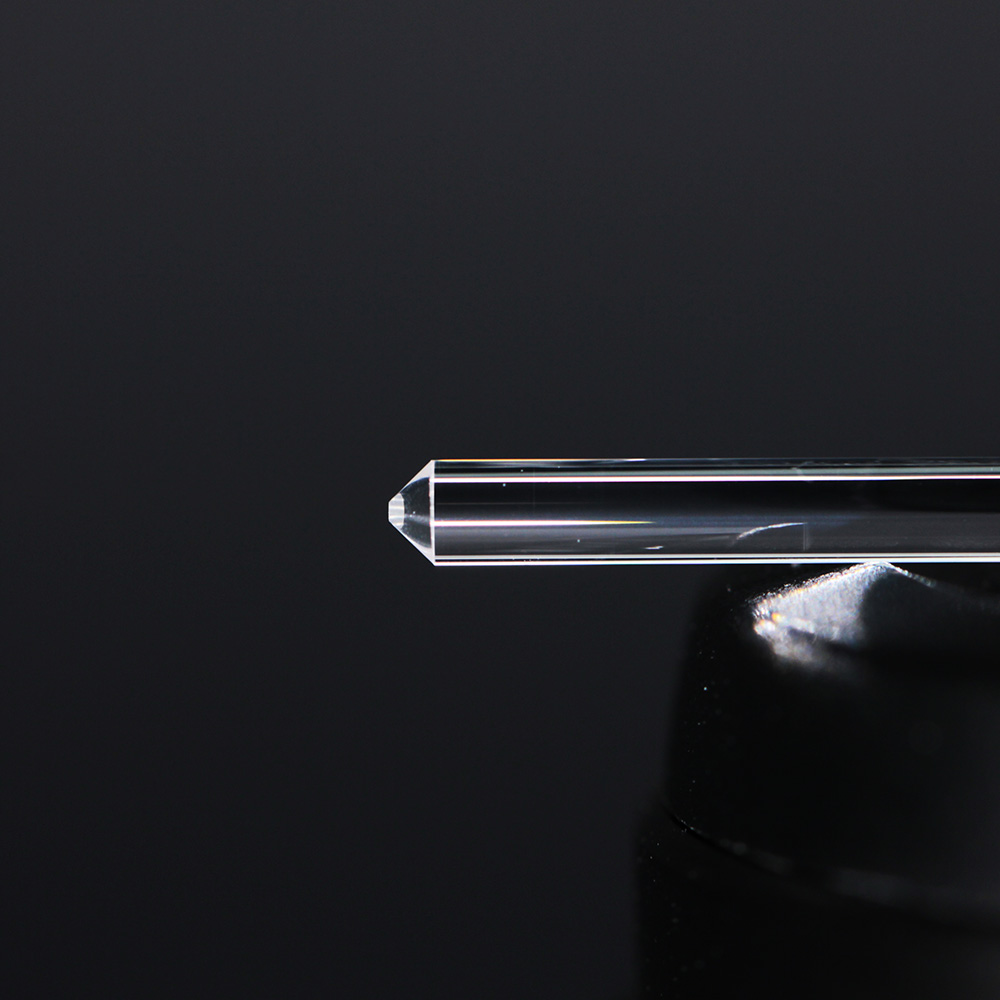

Polished Synthetic Sapphire Rods | Ruby Rods
.Polished Synthetic Sapphire Rods And Ruby Rods
We provide a variety of Sapphire Rods And Ruby Rods based on customization needs, from diameter, length, top shape, drilling requirements, step requirements, polishing requirements can make different products for different customers. Our specific processing capabilities can be found below, if you have more specific or special requirements for Sapphire Rod and Ruby Rods products, please contact our sales staff for assistance:
1. Diameter range: the smallest can reach D0.5mm The highest tolerance can be ±0.0025mm, Maximum diameter can be D300mm, but the length will be affected.
2. Length: Usually we use sapphire from ky method to make sapphire rods, but if there is a demand for sapphire rods longer than 300mm, we will use EFG sapphires, which can reach up to 1500mm.
3. Top shape: flat head, dome, cone, special shape, and drilling in the cylinder surface, we can meet most of the processing requirements, and can provide different surface quality grinding and polishing
4. Special shape requirements: can provide processing needs in cylinder grooving and cutting, welcome to contact our sales staff
Materials:
The crystals grown by the KY method have few internal defects and high optical quality, which are often used in optical products, and the sapphire rods made are often used for optical purposes such as light guides, cylindrical mirrors, laser rods, etc.;
EFG made of sapphire rod can grow a long time, and can grow a specific shape according to the shape of the mold, so it is often used in mechanical parts, NMR tubes, plungers and other applications, EFG method of production of sapphire products can be used without mechanical processing, but the dimensional tolerance will not be too accurate, usually EFG sapphire outer diameter tolerance can be controlled within ± 0.25. After machining, EFG method sapphire can also be used in a variety of precision mechanical applications, optic-well can provide dimensional processing accuracy will vary according to the size, please contact us for specific information.
We usually turn rubies used as mechanical bearings, rods, plungers into mechanical grade rubies because they have basically no special requirements for the optical properties of the product, so the price is lower than the price of ruby products for optical grade use.
